K2225 - High Speed Power Switching MOSFET

K2225 Description

2SK2225 1500V - 2A - MOS FET High Speed Power Switching Application High speed power switching .

K2225 Features

* High breakdown voltage (VDSS = 1500 V)
* High speed switching
* Low drive current
* No Secondary breakdown
* Suitable for switching regulator, DC-DC converter Outline RENESAS Package code: PRSS0003ZA-A (Package name: TO-3PFM) G 1 2 3 Absolute Maximum Ratings Item Drain to sou

📥 Download Datasheet

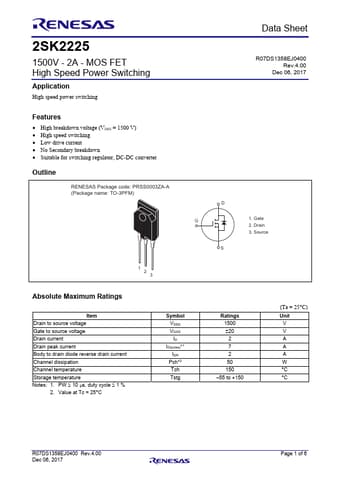

Preview of K2225 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
K2225
Manufacturer
Renesas ↗
File Size
315.31 KB
Datasheet
K2225-Renesas.pdf
Description
High Speed Power Switching MOSFET
