K2229 - N-Channel MOSFET

Datasheet Summary

Features

tly prohibited except in compliance with all applicable export laws and regulations.
Please contact your.

Toshiba

📥 Download Datasheet

Datasheet Details

Part number	K2229
Manufacturer	Toshiba
File Size	383.02 KB
Description	N-Channel MOSFET
Datasheet	K2229 Datasheet
Additional preview pages of the K2229 datasheet.

📁 Similar Datasheet

K222 - 2SK222 (Sanyo Semicon Device)
K2220 - Silicon N Channel MOS FET (Renesas)
K2220 - 2SK2220 (Hitachi Semiconductor)
K2221 - Silicon N-Channel MOSFET (Renesas)
K2221 - 2SK2221 (Hitachi Semiconductor)
K2222 - N-Channel Transistor (ETC)
K2225 - 2SK2225 (Hitachi Semiconductor)
K2225 - High Speed Power Switching MOSFET (Renesas)
K222J15C0GF5xx - (K223xxxx) Leaded Ceramic Multilayer Capacitors (Vishay Intertechnology)
K222K15X7Rxxxx - (K223xxxx) Leaded Ceramic Multilayer Capacitors (Vishay Intertechnology)

Other Datasheets by Toshiba

K2228 - Silicon N-Channel MOSFET
K2201 - 2SK2201
K2230 - Silicon N-Channel MOSFET

Full PDF Text Transcription

Click to expand full text

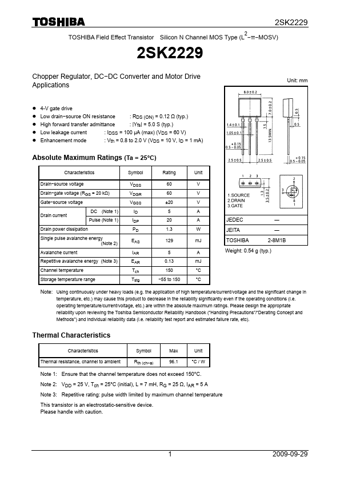

2SK2229 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (L2−π−MOSV) 2SK2229 Chopper Regulator, DC−DC Converter and Motor Drive Applications Unit: mm z 4-V gate drive z Low drain−source ON resistance : RDS (ON) = 0.12 Ω (typ.) z High forward transfer admittance : |Yfs| = 5.0 S (typ.) z Low leakage current : IDSS = 100 μA (max) (VDS = 60 V) z Enhancement mode : Vth = 0.8 to 2.
