K2221 - Silicon N-Channel MOSFET

This page provides the datasheet information for the K2221, a member of the K2220 Silicon N-Channel MOSFET family.

Datasheet Summary

Features

  • High power gain.
  • Excellent frequency response.
  • High speed switching.
  • Wide area of safe operation.
  • Enhancement-mode.
  • Good complementary characteristics.
  • Equipped with gate protection diodes Outline REJ03G1004-0200 (Previous: ADE-208-1352) Rev.2.00 Sep 07, 2005.

📥 Download Datasheet

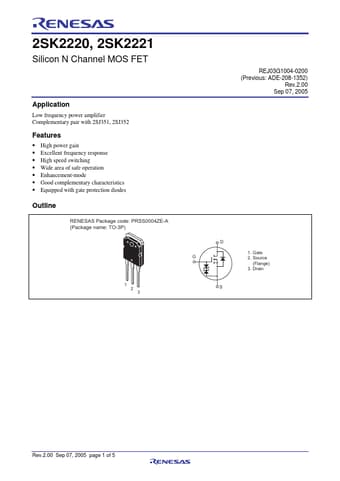

Datasheet preview – K2221
