NE5550234 - Silicon Power MOSFET

Product Overview

Renesas

📥 Download Datasheet

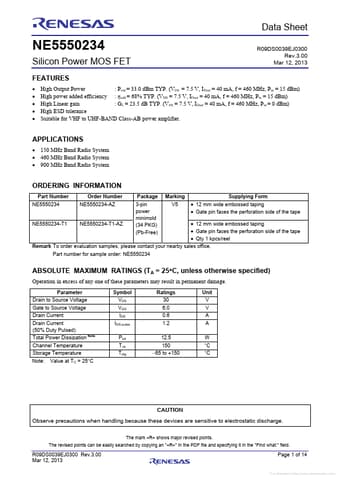

NE5550234 Silicon Power MOSFET by Renesas - Datasheet Preview — Datasheet preview – NE5550234

Datasheet Details

Part number	NE5550234
Manufacturer	Renesas
File Size	1.33 MB
Description	Silicon Power MOSFET
Datasheet	NE5550234 Datasheet
Additional preview pages of the NE5550234 datasheet.

Product details

Features

R09DS0039EJ0300 Rev.3.00 Mar 12, 2013 High Output Power : Pout = 33.0 dBm TYP. (VDS = 7.5 V, IDset = 40 mA, f = 460 MHz, Pin = 15 dBm) High power added efficiency : ηadd = 68% TYP. (VDS = 7.5 V, IDset = 40 mA, f = 460 MHz, Pin = 15 dBm) High Linear gain : GL = 23.5 dB TYP. (VDS = 7.5 V, IDset = 40 mA, f = 460 MHz, Pin = 0 dBm) High ESD tolerance Suitable for VHF to UHF-BAND Class-AB power amplifier.
