RJP30E2DPP-M0

N-Channel Power MOSFET

RJP30E2DPP-M0 Features

* Trench gate technology (G5H series) Low collector to emitter saturation voltage VCE(sat) = 1.7 V typ High speed switching tf = 150 ns typ Low leak current ICES = 1 μA max Isolated package TO-220FL R07DS0347EJ0200 Rev.2.00 Apr 12, 2011 Outline RENESA

RJP30E2DPP-M0 General Description

of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and application examples. You are fully responsible for the incorporation of these circuits, software, and information in the design of your equipment. Renesa.

RJP30E2DPP-M0 Datasheet (213.25 KB)

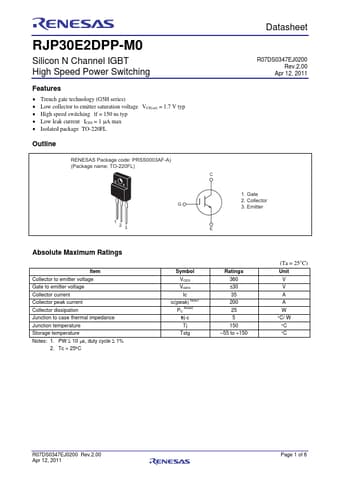

Preview of RJP30E2DPP-M0 PDF

Datasheet Details

Part number:

RJP30E2DPP-M0

Manufacturer:

Renesas ↗

File Size:

213.25 KB

Description:

N-channel power mosfet.
