uPD46185084B

18M-BIT QDR II SRAM 4-WORD BURST OPERATION

uPD46185084B Features

* 1.8 ± 0.1 V power supply

* 165-pin PLASTIC BGA (13 x 15)

* HSTL interface

* PLL circuitry for wide output data valid window and future frequency scaling

* Separate independent read and write data ports with concurrent transactions

* 100% bus utilizat

uPD46185084B General Description

R10DS0113EJ0200 Rev.2.00 Nov 09, 2012 The μPD46185084B is a 2,097,152-word by 8-bit, the μPD46185094B is a 2,097,152-word by 9-bit, the μPD46185184B is a 1,048,576-word by 18-bit and the μPD46185364B is a 524,288-word by 36-bit synchronous quad data rate static RAM fabricated with advanced CMOS te.

uPD46185084B Datasheet (567.19 KB)

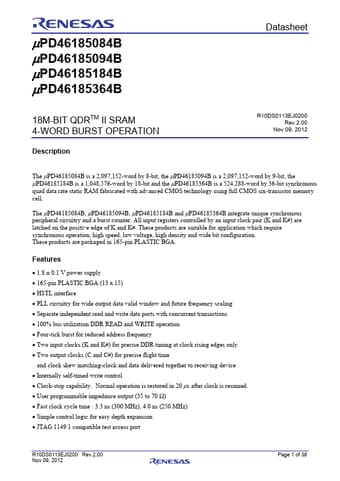

Preview of uPD46185084B PDF

Datasheet Details

Part number:

uPD46185084B

Manufacturer:

Renesas ↗

File Size:

567.19 KB

Description:

18m-bit qdr ii sram 4-word burst operation.
