uPD46185182B, uPD46185092B Datasheet - Renesas

uPD46185182B 18M-BIT QDR II SRAM 2-WORD BURST OPERATION

The μPD46185092B is a 2,097,152-word by 9-bit, the μPD46185182B is a 1,048,576-word by 18-bit and the μPD46185362B is a 524,288-word by 36-bit synchronous quad data rate static RAM fabricated with advanced CMOS technology using full CMOS six-transistor memory cell. The μPD46185092B, μPD46185182B and.

uPD46185182B Features

* 1.8 ± 0.1 V power supply

* 165-pin PLASTIC BGA (13 x 15)

* HSTL interface

* PLL circuitry for wide output data valid window and future frequency scaling

* Separate independent read and write data ports with concurrent transactions

* 100% bus utilizat

uPD46185092B-Renesas.pdf

This datasheet PDF includes multiple part numbers: uPD46185182B, uPD46185092B. Please refer to the document for exact specifications by model.

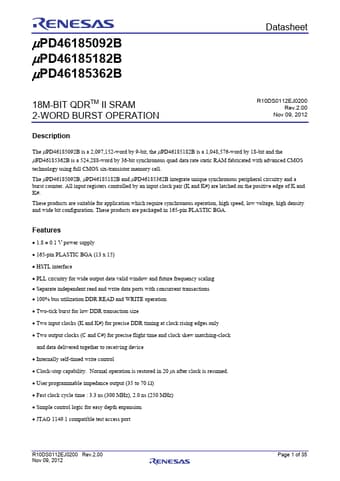

uPD46185182B Datasheet Preview Page 2 uPD46185182B Datasheet Preview Page 3

Datasheet Details

Part number:

uPD46185182B, uPD46185092B

Manufacturer:

Renesas ↗

File Size:

613.15 KB

Description:

18m-bit qdr ii sram 2-word burst operation.

Note:

This datasheet PDF includes multiple part numbers: uPD46185182B, uPD46185092B.
Please refer to the document for exact specifications by model.
