uPD46185364B, uPD46185084B - 18M-BIT QDR II SRAM 4-WORD BURST OPERATION

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: uPD46185364B, uPD46185084B. Please refer to the document for exact specifications by model.

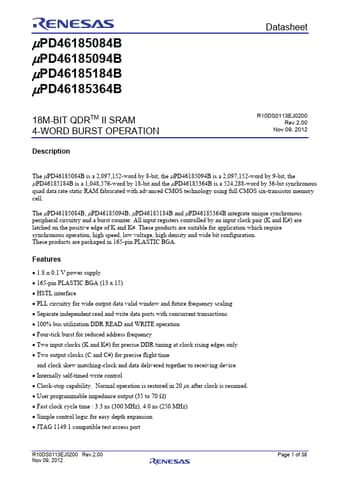

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number uPD46185364B, uPD46185084B
Manufacturer Renesas ↗
File Size 567.19 KB
Description 18M-BIT QDR II SRAM 4-WORD BURST OPERATION
Datasheet download datasheet uPD46185084B-Renesas.pdf
Note This datasheet PDF includes multiple part numbers: uPD46185364B, uPD46185084B.
Please refer to the document for exact specifications by model.

uPD46185364B Product details

Description

R10DS0113EJ0200 Rev.2.00 Nov 09, 2012 The μPD46185084B is a 2,097,152-word by 8-bit, the μPD46185094B is a 2,097,152-word by 9-bit, the μPD46185184B is a 1,048,576-word by 18-bit and the μPD46185364B is a 524,288-word by 36-bit synchronous quad data rate static RAM fabricated with advanced CMOS technology using full CMOS six-transistor memory cell.The μPD46185084B, μPD46185094B, μPD46185184B and μPD46185364B integrate unique synchronous peripheral circuitry and a burst counter.All input regi

Features
