UPD4616112 - 16M-BIT CMOS MOBILE SPECIFIED RAM 1M-WORD BY 16-BIT

NEC

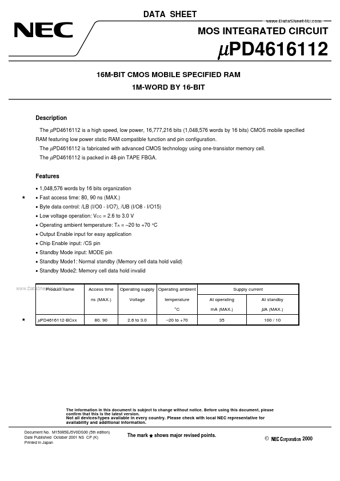

UPD4616112 Datasheet Preview — Preview of UPD4616112 PDF

Datasheet Details

Part number	UPD4616112
Manufacturer	NEC
File Size	272.04 KB
Description	16M-BIT CMOS MOBILE SPECIFIED RAM 1M-WORD BY 16-BIT
Datasheet	UPD4616112_NEC.pdf

UPD4616112 Product details

Description

The µPD4616112 is a high speed, low power, 16,777,216 bits (1,048,576 words by 16 bits) CMOS mobile specified RAM featuring low power static RAM compatible function and pin configuration.

Features

1,048,576 words by 16 bits organization 5.
Fast access time: 80, 90 ns (MAX. ).
Byte data control: /LB (I/O0 - I/O7), /UB (I/O8 - I/O15).
Low voltage operation: VCC = 2.6 to 3.0 V.
Operating ambient temperature: TA =.
20 to +70 °C.
Output Enable input for easy.
