uPD46184095B Datasheet - Renesas

uPD46184095B 18M-BIT DDR II SRAM SEPARATE I/O 2-WORD BURST OPERATION

R10DS0115EJ0200 Rev.2.00 Nov 09, 2012 The μPD46184095B is a 2,097,152-word by 9-bit and the μPD46184185B is a 1,048,576-word by 18-bit synchronous double data rate static RAM fabricated with advanced CMOS technology using full CMOS six-transistor memory cell. The μPD46184095B and μPD46184185B inte.

uPD46184095B Features

* 1.8 ± 0.1 V power supply

* 165-pin PLASTIC BGA (13 x 15)

* HSTL interface

* PLL circuitry for wide output data valid window and future frequency scaling

* Separate independent read and write data ports

* DDR read or write operation initiated each cyc

uPD46184095B-Renesas.pdf

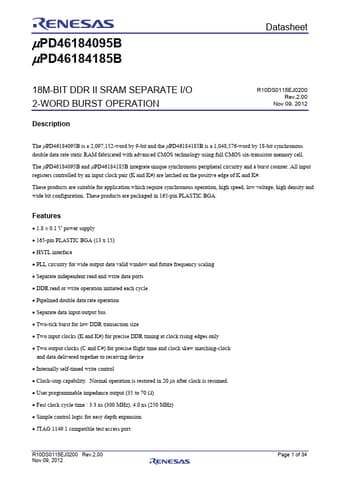

Preview of uPD46184095B PDF
uPD46184095B Datasheet Preview Page 2 uPD46184095B Datasheet Preview Page 3

Datasheet Details

Part number:

uPD46184095B

Manufacturer:

Renesas ↗

File Size:

546.72 KB

Description:

18m-bit ddr ii sram separate i/o 2-word burst operation.
