uPD46184362B, uPD46184182B Datasheet - Renesas

uPD46184362B 18M-BIT DDR II SRAM 2-WORD BURST OPERATION

The μPD46184182B is a 1,048,576-word by 18-bit and the μPD46184362B is a 524,288-word by 36-bit synchronous double data rate static RAM fabricated with advanced CMOS technology using full CMOS six-transistor memory cell. The μPD46184182B and μPD46184362B integrate unique synchronous peripheral circu.

uPD46184362B Features

* 1.8 ± 0.1 V power supply

* 165-pin PLASTIC BGA (13 x 15)

* HSTL interface

* PLL circuitry for wide output data valid window and future frequency scaling

* Pipelined double data rate operation

* Common data input/output bus

* Two-tick burst fo

uPD46184182B-Renesas.pdf

This datasheet PDF includes multiple part numbers: uPD46184362B, uPD46184182B. Please refer to the document for exact specifications by model.

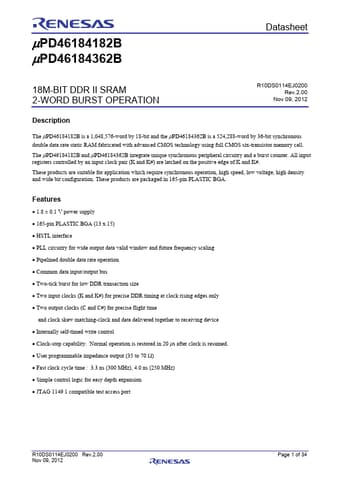

uPD46184362B Datasheet Preview Page 2 uPD46184362B Datasheet Preview Page 3

Datasheet Details

Part number:

uPD46184362B, uPD46184182B

Manufacturer:

Renesas ↗

File Size:

556.49 KB

Description:

18m-bit ddr ii sram 2-word burst operation.

Note:

This datasheet PDF includes multiple part numbers: uPD46184362B, uPD46184182B.
Please refer to the document for exact specifications by model.
