uPD46184184B Datasheet - Renesas

uPD46184184B 18M-BIT DDR II SRAM 4-WORD BURST OPERATION

The μPD46184184B is a 1,048,576-word by 18-bit synchronous double data rate static RAM fabricated with advanced CMOS technology using full CMOS six-transistor memory cell. The μPD46184184B integrate unique synchronous peripheral circuitry and a burst counter. All input registers controlled by an in.

uPD46184184B Features

* 1.8 ± 0.1 V power supply

* 165-pin PLASTIC BGA (13 x 15)

* HSTL interface

* PLL circuitry for wide output data valid window and future frequency scaling

* Pipelined double data rate operation

* Common data input/output bus

* Two-tick burst fo

uPD46184184B-Renesas.pdf

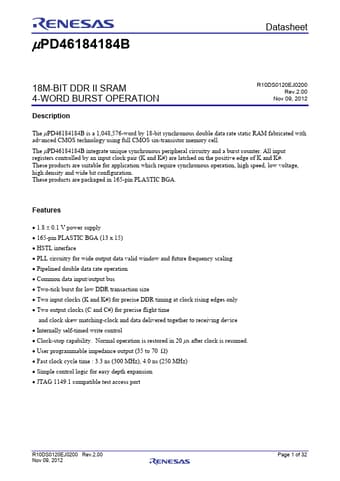

Preview of uPD46184184B PDF
uPD46184184B Datasheet Preview Page 2 uPD46184184B Datasheet Preview Page 3

Datasheet Details

Part number:

uPD46184184B

Manufacturer:

Renesas ↗

File Size:

516.08 KB

Description:

18m-bit ddr ii sram 4-word burst operation.
