UPD4616112-X Datasheet - NEC

UPD4616112-X 16M-BIT CMOS MOBILE SPECIFIED RAM 1M-WORD BY 16-BIT EXTENDED TEMPERATURE OPERATION

The µPD4616112-X is a high speed, low power, 16,777,216 bits (1,048,576 words by 16 bits) CMOS mobile specified RAM featuring low power static RAM compatible function and pin configuration. The µPD4616112-X is fabricated with advanced CMOS technology using one-transistor memory cell. The µPD4616112-.

UPD4616112-X Features

* 1,048,576 words by 16 bits organization

* Fast access time: 85, 95 ns (MAX.)

* Byte data control: /LB (I/O0 - I/O7), /UB (I/O8 - I/O15)

* Low voltage operation: VCC = 2.6 to 3.1 V

* Operating ambient temperature: TA =

* 25 to +85 °C

* Output E

UPD4616112-X_NEC.pdf

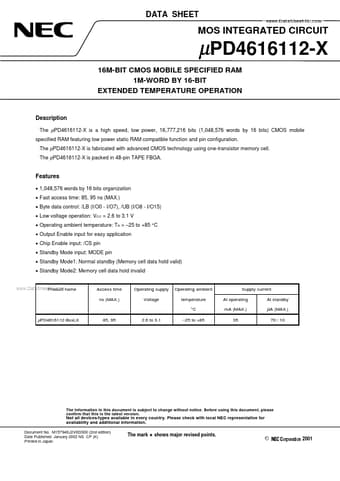

UPD4616112-X Datasheet Preview — Preview of UPD4616112-X PDF

Datasheet Details

Part number:

UPD4616112-X

Manufacturer:

NEC

File Size:

264.91 KB

Description:

16m-bit cmos mobile specified ram 1m-word by 16-bit extended temperature operation.
