2SC5730 - Medium power transistor

2SC5730 Description

2SC5730 Transistor Medium power transistor (30V, 1.0A) 2SC5730 !.

2SC5730 Features

* 1) High speed switching. (Tf : Typ. : 35ns at IC = 1.0A) 2) Low saturation voltage, typically (Typ. : 150mV at IC = 500mA, IB = 50mA) 3) Strong discharge power for inductive load and capacitance load. 4) Complements the 2SA2048 !External dimensions (Units : mm) TSMT3 0.95 0.95 (1) 2.8 1.6 1.9 0.4

2SC5730 Applications

* Small signal low frequency amplifier High speed switching !Structure NPN Silicon epitaxial planar transistor !Packaging specifications Package Type Code Basic ordering unit (pieces) 2SC5730 Taping TL 3000 !Absolute maximum ratings (Ta=25°C) Parameter Collector-base voltage Collector-emitter volta

📥 Download Datasheet

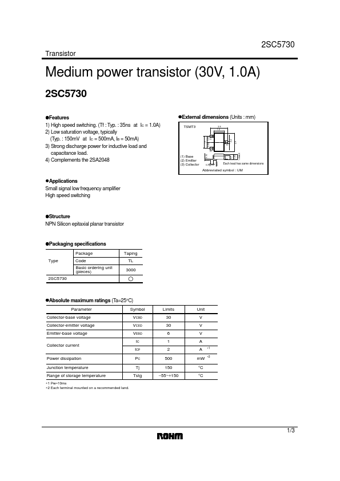

Preview of 2SC5730 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC5730
Manufacturer
ROHM ↗
File Size
57.44 KB
Datasheet
2SC5730_Rohm.pdf
Description
Medium power transistor
