2SC5738 Datasheet - Toshiba Semiconductor

2SC5738 NPN Transistor

TOSHIBA Transistor Silicon NPN Epitaxial Type 2SC5738 High-Speed Switching Applications DC-DC Converter Applications 2SC5738 Unit: mm High DC current gain: hFE = 400 to 1000 (IC = 0.5 A) Low collector-emitter saturation voltage: VCE (sat) = 0.15 V (max) High-speed switching: tf = 90 ns (typ.) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage Collector-emitter voltage Collector-emitter voltage Emitter-base volta.

2SC5738 Datasheet (143.53 KB)

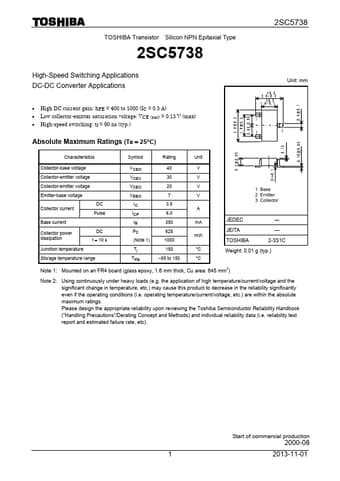

Preview of 2SC5738 PDF
2SC5738 Datasheet Preview Page 2 2SC5738 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC5738

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

143.53 KB

Description:

Npn transistor.
