2SD2696 - Low frequency transistor

2SD2696 Description

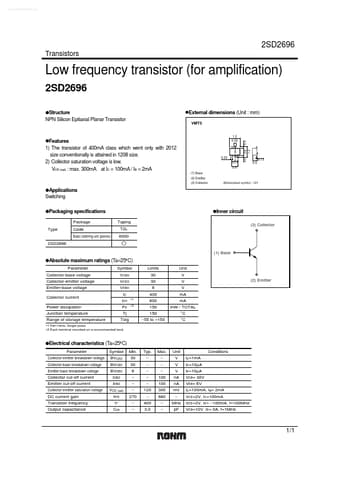

www.DataSheet4U.com 2SD2696 Transistors Low frequency transistor (for amplification) 2SD2696 zStructure NPN Silicon Epitaxial Planar Transistor zExt.

2SD2696 Features

* 1) The transistor of 400mA class which went only with 2012 size conventionally is attained in 1208 size. 2) Collector saturation voltage is low. VCE (sat) : max. 300mA at IC = 100mA / IB = 2mA (1) Base (2) Emitter (3) Collector (3) 0.2 0.22 (1)(2) 0.8 1.2 0.4 0.4 0.8 0.13 0.5 Abbreviated symbol

2SD2696 Applications

* Switching zPackaging specifications Package Type 2SD2696 Code Basic ordering unit (pieces) Taping T2L 8000 zInner circuit (3) Collector (1) Base zAbsolute maximum ratings (Ta=25°C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Power dissipation
