RU1088R - N-Channel Advanced Power MOSFET

Ruichips

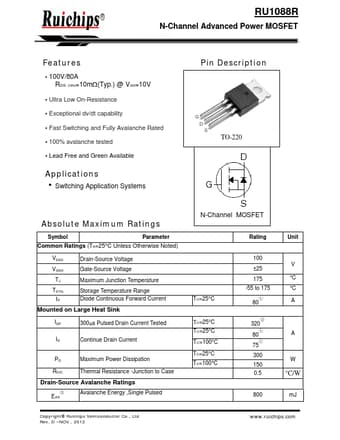

RU1088R Datasheet Preview — Preview of RU1088R PDF

Datasheet Details

Part number	RU1088R
Manufacturer	Ruichips
File Size	318.52 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	RU1088R-Ruichips.pdf

RU1088R Product details

Description

TO-220 Absolute Maximum Ratings Symbol Parameter Common Ratings (TA=25°C Unless Otherwise Noted) VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ Maximum Junction Temperature TSTG IS Storage Temperature Range Diode Continuous Forward Current Mounted on Large Heat Sink IDP 300µs Pulsed Drain Current Tested ID Continue Drain Current PD Maximum Power Dissipation RθJC Thermal Resistance -Junction to Case Drain-Source Avalanche Ratings ③ EAS Avalanche Energy ,Single Pulsed N-

Features

100V/80A RDS (ON)=10mΩ(Typ. ) @ VGS=10V.
Ultra Low On-Resistance.
Exceptional dv/dt capability.
Fast Switching and Fully Avalanche Rated.
100% avalanche tested.
Lead Free and Green Available.
