RU120N15Q

N-Channel Advanced Power MOSFET

RU120N15Q Features

* 150V/120A RDS (ON)=15mΩ(Typ.) @ VGS=10V

* Avalanche Rated

* Reliable and Rugged

* Lead Free and Green Devices Available Applications

* Automotive applications and a wide variety of other applications

* High Efficiency Synchronous in SMPS

* High Speed Power Switching Pin De

RU120N15Q General Description

TO-247 Absolute Maximum Ratings Symbol Parameter Common Ratings (TA=25°C Unless Otherwise Noted) VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ Maximum Junction Temperature TSTG IS Storage Temperature Range Diode Continuous Forward Current Mounted on Large Heat Sink IDP 300µs Pul.

RU120N15Q Datasheet (315.55 KB)

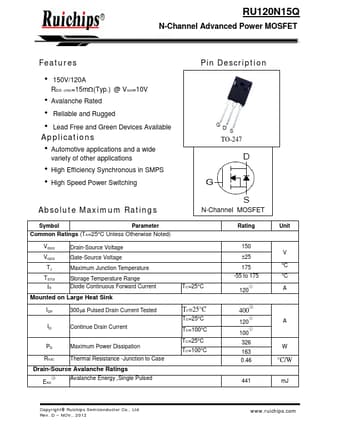

Preview of RU120N15Q PDF

Datasheet Details

Part number:

RU120N15Q

Manufacturer:

Ruichips

File Size:

315.55 KB

Description:

N-channel advanced power mosfet.
