RU12200R Datasheet, Mosfet, Ruichips

RU12200R Features

  • Mosfet
  • 120V/200A, RDS (ON) =5.8mΩ(Typ.)@VGS=10V
  • Reliable and Rugged
  • Ultra Low On-Resistance
  • 100% avalanche tested
  • 175°C Operating Temperature

PDF File Details

Part number:

RU12200R

Manufacturer:

Ruichips

File Size:

440.45kb

Download:

📄 Datasheet

Description:

N-channel advanced power mosfet. GDS TO220 D G Absolute Maximum Ratings Symbol Parameter Common Ratings (TC=25°C Unless Otherwise Noted) VDSS VGSS TJ TSTG IS

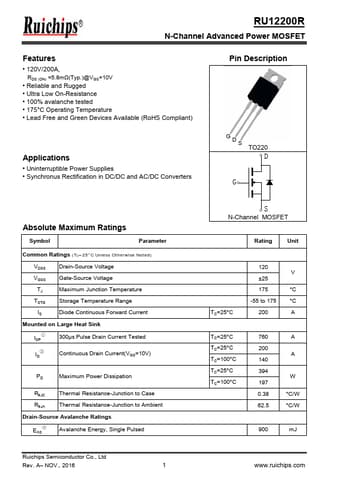

Datasheet Preview: RU12200R 📥 Download PDF (440.45kb)
Page 2 of RU12200R Page 3 of RU12200R

RU12200R Application

  • Applications
  • Uninterruptible Power Supplies
  • Synchronus Rectification in DC/DC and AC/DC Converters Pin Description GDS TO220
