RU16P8M4 Datasheet, Mosfet, Ruichips

RU16P8M4 Features

  • Mosfet
  • -16V/-8A, RDS (ON) =40mΩ(Typ.)@VGS=-4.5V RDS (ON) =65mΩ(Typ.)@VGS=-2.5V
  • Super High Dense Cell Design
  • Fast Switching Speed
  • Reliable and Rugged

PDF File Details

Part number:

RU16P8M4

Manufacturer:

Ruichips

File Size:

292.86kb

Download:

📄 Datasheet

Description:

P-channel advanced power mosfet. G D D S D PIN1 S D D SDFN2020 D G Absolute Maximum Ratings Symbol Parameter Common Ratings (TC=25°C Unless Otherwise Noted)

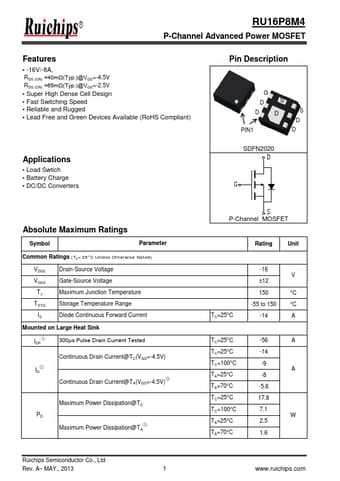

Datasheet Preview: RU16P8M4 📥 Download PDF (292.86kb)
Page 2 of RU16P8M4 Page 3 of RU16P8M4

RU16P8M4 Application

  • Applications
  • Load Swtich
  • Battery Charge
  • DC/DC Converters Pin Description G D D S D PIN1 S D D SDFN2020 D G Abs
