RU1890H04CAA RF Module

Pin No. 3 6 7 8 9 11 17 19 21 22 26 27 36 Other pins Pin Name VCC_PA SYEN SYDA SYCL SYRI RXDSG VCC_OC TXDA RXDA RSSI PAON PSEL * RF1 GND Input/Out put I I I I I I I I O O I I I/O - Descriptions Supply voltage for Power Amplifier circuits PLL Enable PLL Data PLL Clock System Reference Frequenc.

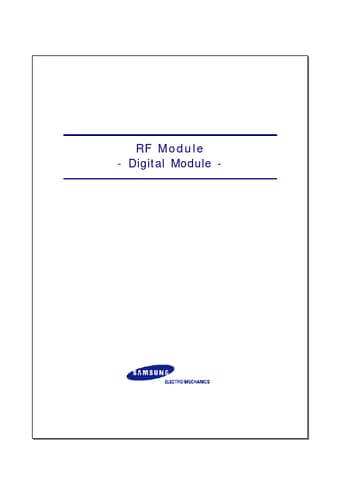

RF Module - Digital Module - RF Module - Digital Module INTRODUCTION SAMSUNG Electro-mechanics has two kinds of Digital RF Modules ; 2.4GHz, DECT 2.4GHz RF Module is an unit product of RF part in SST phone. This RF unit transmits and receives with TDD(Time Division Duplexer), MCA(Multi Channel Access), SS(Spread Spectrum) system which has channel space 864KHz in 92 channels. DECT RF Module is a unit product of RF part in DECT phone. This RF Unit transmits and receives with TDD(Time Divisi.
