SCT2A21 Datasheet, Converter, SCT

SCT2A21 Features

  • Converter
  • Wide Input Range: 4.5V-100V
  • 1A Continuous Output Current
  • Integrated 530mΩ High-Side and 220mΩ Low- Side Power MOSFETs
  • 150uA Quiescent Current

PDF File Details

Part number:

SCT2A21

Manufacturer:

SCT

File Size:

1.42MB

Download:

📄 Datasheet

Description:

Constant on-time synchronous buck converter. The SCT2A21 is a 1A synchronous buck converters with wide input voltage, ranging from 4.5V to 100V, which integrates an 530mΩ high-si

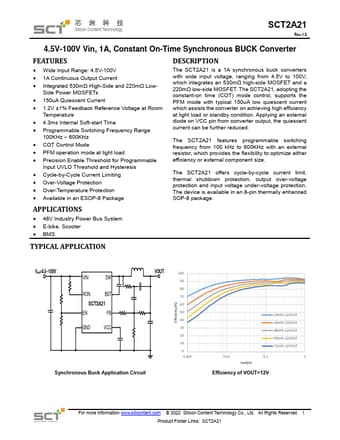

Datasheet Preview: SCT2A21 📥 Download PDF (1.42MB)
Page 2 of SCT2A21 Page 3 of SCT2A21

SCT2A21 Application

  • Applications
  • 48V Industry Power Bus System
  • E-bike, Scooter
  • BMS DESCRIPTION The SCT2A21 is a 1A synchronous buck conve
