SCT2A23A Datasheet, Converter, SCT

SCT2A23A Features

  • Converter
  • Wide Input Range: 4.5V-100V
  • 1.2A Continuous Output Current
  • 2.75A peak current limit
  • Integrated 600mΩ High-Side and 300mΩ Low- Side Power MOSFETs

PDF File Details

Part number:

SCT2A23A

Manufacturer:

SCT

File Size:

1.73MB

Download:

📄 Datasheet

Description:

Step-down dcdc converter. The SCT2A23A is 1.2A Step-down DCDC converter with wide input voltage, ranging from 4.5V to 100V, which integrates an 600mΩ high-side

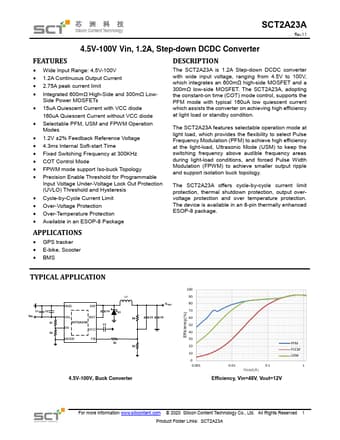

Datasheet Preview: SCT2A23A 📥 Download PDF (1.73MB)
Page 2 of SCT2A23A Page 3 of SCT2A23A

SCT2A23A Application

  • Applications
  • GPS tracker
  • E-bike, Scooter
  • BMS TYPICAL APPLICATION C1 VIN C2 R1 R2 L1 GND SW C4 D1 VIN BST R
