SCT2A22 Datasheet, Converter, SCT

SCT2A22 Features

• Converter
• Wide Input Range: 4.5V-100V
• 1A Continuous Output Current
• Integrated 530mΩ High-Side and 220mΩ Low- Side Power MOSFETs
• 1.2V ±1% Feedback Reference

PDF File Details

Part number:

SCT2A22

Manufacturer:

SCT

File Size:

1.36MB

Download:

📄 Datasheet

Description:

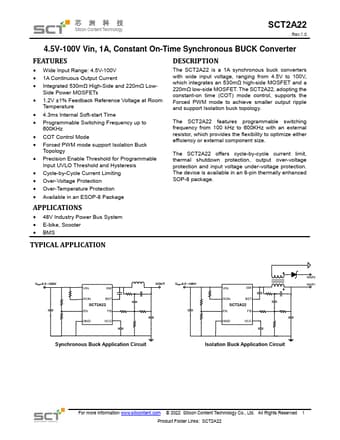

Constant on-time synchronous buck converter. The SCT2A22 is a 1A synchronous buck converters with wide input voltage, ranging from 4.5V to 100V, which integrates an 530mΩ high-si

SCT2A22 Application

• Applications
• 48V Industry Power Bus System
• E-bike, Scooter
• BMS TYPICAL APPLICATION VIN=4.5~100V VIN SW RON BST
