SCT2A26 - High Efficiency Asynchronous Step-down DCDC Converter

Name: SCT2A26
SKU: SCT2A26-1556390

SCT

📥 Download Datasheet

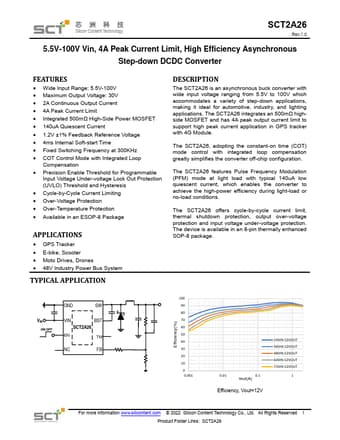

SCT2A26 Datasheet Preview — Preview of SCT2A26 PDF

Datasheet Details

Part number	SCT2A26
Manufacturer	SCT
File Size	1.60 MB
Description	High Efficiency Asynchronous Step-down DCDC Converter
Datasheet	SCT2A26-SCT.pdf

SCT2A26 Product details

Description

The SCT2A26 is an asynchronous buck converter with wide input voltage ranging from 5.5V to 100V which accommodates a variety of step-down applications, making it ideal for automotive, industry, and lighting applications.

Features

Wide Input Range: 5.5V-100V.
Maximum Output Voltage: 30V.
2A Continuous Output Current.
4A Peak Current Limit.
Integrated 500mΩ High-Side Power MOSFET.
140uA Quiescent Current.
1.2V ±1% Feedback Reference Voltage.
4ms Internal Soft-start Time.
Fixed Switching Frequency at 300KHz.
COT Control Mode with Integrated Loop Compensation.
Precision Enable Threshold for Programmable Input Voltage Under-voltage Lock Out Protection (UVLO) Threshold an.
