MMBTSC2411 Datasheet - SEMTECH ELECTRONICS

MMBTSC2411 - NPN Transistor

MMBTSC2411 NPN Silicon Epitaxial Planar Transistor The transistor is subdivided into three groups P, Q and R according to its DC current gain. www.DataSheet4U.com Absolute Maximum Ratings (T a = 25 OC) Symbol VCBO VCEO VEBO IC Ptot Tj TS SOT-23 Plastic Package V al ue 40 32 5 500 200 150 -55 to +150 Unit V V V mA mW O Parameter C o ll e ct o r B as e V o lt a g e Collector Emitter Voltage Emitter Base Voltage Collector Current Power Dissipation Junction Temperature Storage Temperature Rang.

MMBTSC2411_SEMTECHELECTRONICS.pdf

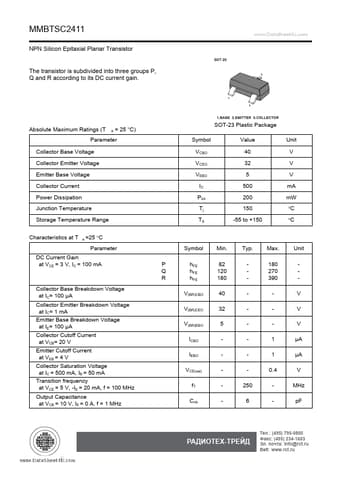

Preview of MMBTSC2411 PDF
MMBTSC2411 Datasheet Preview Page 2

Datasheet Details

Part number:

MMBTSC2411

Manufacturer:

SEMTECH ELECTRONICS

File Size:

489.04 KB

Description:

Npn transistor.
