MMBTSC2413 NPN Transistor

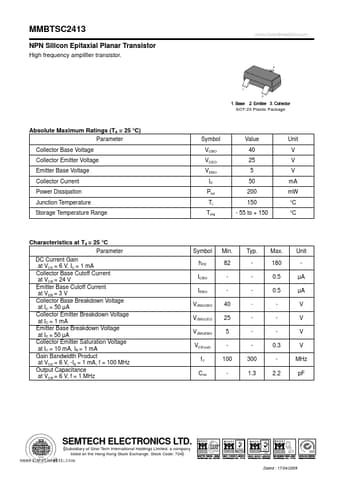

MMBTSC2413 NPN Silicon Epitaxial Planar Transistor High frequency amplifier transistor. www.DataSheet4U.com SOT-23 Plastic Package Absolute Maximum Ratings (Ta = 25 OC) Parameter Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Power Dissipation Junction Temperature Storage Temperature Range Symbol VCBO VCEO VEBO IC Ptot Tj Tstg Value 40 25 5 50 200 150 - 55 to + 150 Unit V V V mA mW O C C O Characteristics at Ta = 25 OC Parameter DC Current Gain a.
