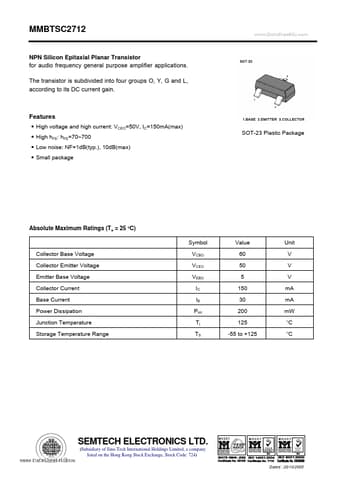

* ․High voltage and high current: VCEO=50V, IC=150mA(max) ․High hFE: hFE=70~700 ․Low noise: NF=1dB(typ.), 10dB(max) ․Small package SOT-23 Plastic Package Absolute Maximum Ratings (Ta = 25 OC) Symbol Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Base Current
MMBTSC2712 Datasheet (264.50 KB)
MMBTSC2712
SEMTECH ELECTRONICS
264.50 KB
Npn transistor.
MMBTSC2712
NPN Silicon Epitaxial Planar Transistor for audio frequency general purpose amplifier applications. The transistor is subdivided into four .
