ST2SC2412 Datasheet - SEMTECH ELECTRONICS

ST2SC2412 - NPN Silicon Epitaxial Planar Transistor

www.DataSheet4U.com ST 2SC2412 NPN Silicon Epitaxial Planar Transistor for general purpose applications.

The transistor is subdivided into three groups Q, R and S.

according to its DC current gain.

TO-92 Plastic Package Weight approx.

0.19g Absolute Maximum Ratings (Ta = 25oC) Symbol Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Power Dissipation Junction Temperature Storage Temperature Range VCBO VCEO VEBO IC Ptot Tj TS Value 60 50 7 150 200 150 -55

ST2SC2412_SEMTECHELECTRONICS.pdf

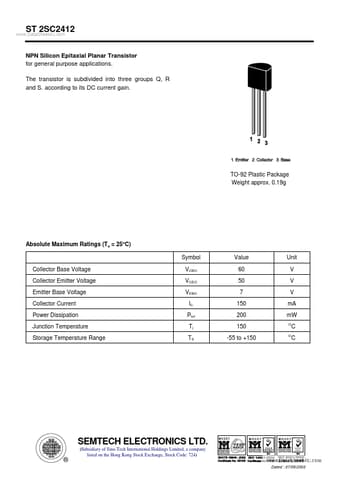

Preview of ST2SC2412 PDF
ST2SC2412 Datasheet Preview Page 2 ST2SC2412 Datasheet Preview Page 3

Datasheet Details

Part number:

ST2SC2412

Manufacturer:

SEMTECH ELECTRONICS

File Size:

270.09 KB

Description:

Npn silicon epitaxial planar transistor.
