KSB564 PNP Silicon Epitaxial Planar Transistor

ST KSB564 PNP Silicon Epitaxial Planar Transistor Audio Frequency Power amplifier applications. The transistor is subdivided into three group, O, Y and G according to its DC current gain. On special request, these transistors can be manufactured in different pin configurations. TO-92 Plastic Package Weight approx. 0.19g Absolute Maximum Ratings (Ta=25℃) Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Power Dissipation Junction Temperature Storage Tempera.

KSB564 Datasheet (142.81 KB)

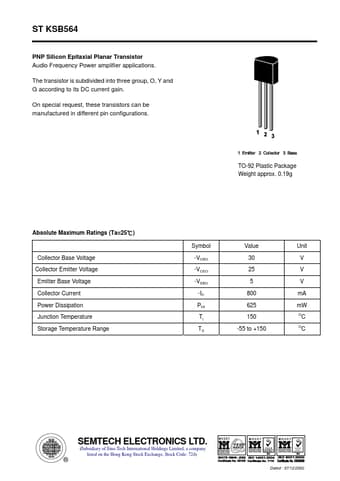

KSB564 Datasheet Preview — Preview of KSB564 PDF

Datasheet Details

Part number:

KSB564

Manufacturer:

SEMTECH

File Size:

142.81 KB

Description:

Pnp silicon epitaxial planar transistor.
