SGM51652D

SAR ADC

SG Micro

SGM51652D Features

* 16 Bits ADC:

* SGM51613D: 800kSPS

* SGM51652D: 500kSPS

* SGM51622D: 250kSPS

* Supply Voltage Ranges:

* Analog Supply: 5V

* I/O Supply: 1.65V to 5V

* On-Chip Reference: 4.096V

* Differential Nonlinearity (DNL):

* SGM51622D/SGM51652D: -0.55LSB/+0.75LSB (TYP)

SGM51652D General Description

The SGM51613D, SGM51652D, and SGM51622D are a series of high-precision successive approximation (SAR) analog-to-digital converters (ADCs). These ADCs are powered by a single unipolar 5V, and support true differential input. These chips have an on-chip high accuracy and low drift 10ppm reference. The.

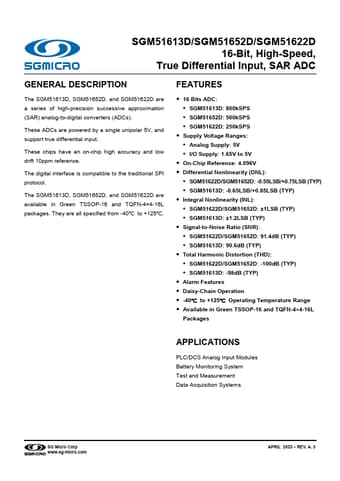

SGM51652D Datasheet (1.14 MB)

SGM51652D Datasheet Preview — Preview of SGM51652D PDF

Datasheet Details

Part number:

SGM51652D

Manufacturer:

SG Micro

File Size:

1.14 MB

Description:

Sar adc.
