SGM51652H8, SGM51652H4 SAR ADC

📥 Download Datasheet  Datasheet Preview Page 1

Description

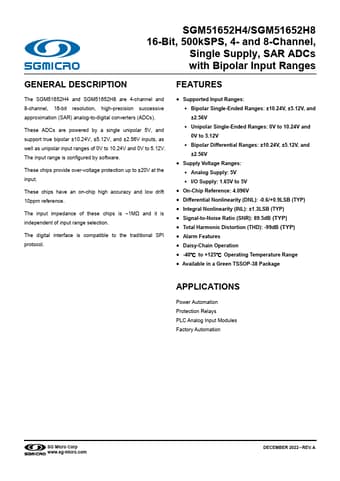

SGM51652H4/SGM51652H8 16-Bit, 500kSPS, 4- and 8-Channel, Single Supply, SAR ADCs with Bipolar Input Ranges GENERAL .
The SGM51652H4 and SGM51652H8 are 4-channel and 8-channel, 16-bit resolution, high-precision successive approximation (SAR) analog-to-digital converte.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SGM51652H8, SGM51652H4. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SGM51652H8, SGM51652H4
Manufacturer
SG Micro
File Size
1.42 MB
Datasheet
SGM51652H4-SGMicro.pdf
Description
SAR ADC
Note
This datasheet PDF includes multiple part numbers: SGM51652H8, SGM51652H4.
Please refer to the document for exact specifications by model.

Features

* Supported Input Ranges:
* Bipolar Single-Ended Ranges: ±10.24V, ±5.12V, and ±2.56V
* Unipolar Single-Ended Ranges: 0V to 10.24V and 0V to 5.12V
* Bipolar Differential Ranges: ±10.24V, ±5.12V, and ±2.56V
* Supply Voltage Ranges:
* Analog Supply: 5V
* I/O Supply: 1.65V to

Applications

* Power Automation Protection Relays PLC Analog Input Modules Factory Automation SG Micro Corp www. sg-micro. com DECEMBER 2022
* REV. A SGM51652H4 SGM51652H8 16-Bit, 500kSPS, 4- and 8-Channel, Single-Supply, SAR ADCs with Bipolar Input Ranges PACKAGE/ORDERING INFORMATION MODEL SGM51652H4

SGM51652H8 Distributors
