SGM51652H4

SAR ADC

SGM51652H4 Features

* Supported Input Ranges:

* Bipolar Single-Ended Ranges: ±10.24V, ±5.12V, and ±2.56V

* Unipolar Single-Ended Ranges: 0V to 10.24V and 0V to 5.12V

* Bipolar Differential Ranges: ±10.24V, ±5.12V, and ±2.56V

* Supply Voltage Ranges:

* Analog Supply: 5V

* I/O Supply: 1.65V to

SGM51652H4 General Description

The SGM51652H4 and SGM51652H8 are 4-channel and 8-channel, 16-bit resolution, high-precision successive approximation (SAR) analog-to-digital converters (ADCs). These ADCs are powered by a single unipolar 5V, and support true bipolar ±10.24V, ±5.12V, and ±2.56V inputs, as well as unipolar input rang.

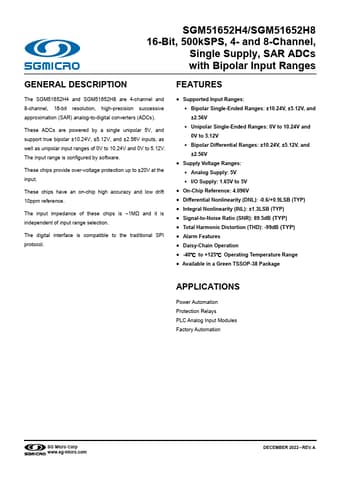

SGM51652H4 Datasheet (1.42 MB)

Preview of SGM51652H4 PDF

Datasheet Details

Part number:

SGM51652H4

Manufacturer:

SG Micro

File Size:

1.42 MB

Description:

Sar adc.
