SGM6013

600mA Synchronous Step-Down Converter

SGM6013 Features

* High Efficiency: Up to 95%

* 30μA Low Quiescent Current at Light Load

* 800mA Output Current

* Input Voltage Range: 2.5V to 5.5V

* 1.2V, 1.8V & 3.3V Fixed & Adjustable Output Voltages

* 0.6V Reference Voltage

* 1.6MHz Constant Switching Frequ

SGM6013 General Description

The SGM6013 is a 1.6MHz, constant frequency, current mode, synchronous, step-down switching regulator. It can deliver 800mA load current from 2.5V to 5.5V input voltage, and output voltage can be as low as 0.6V. High switching frequency minimizes the sizes of inductor and capacitor. Integrated power.

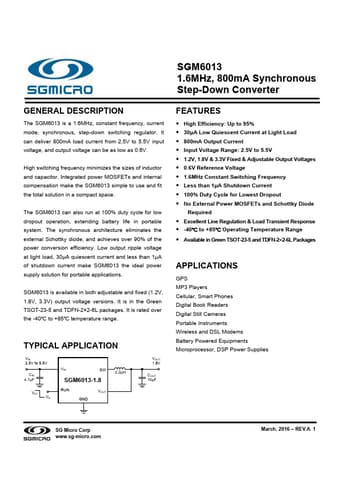

SGM6013 Datasheet (612.86 KB)
