SGM6016 Step-Down Converter

SG Micro

Description

SGM6016 1.2A, 1.6MHz, High Efficiency Synchronous Step-Down Converter GENERAL .
SGM6016 is a 1.

📥 Download Datasheet

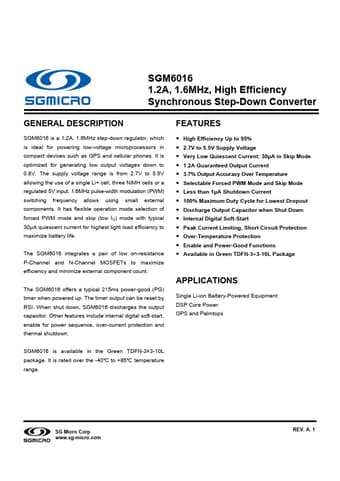

SGM6016 Datasheet Preview — Preview of SGM6016 PDF

Datasheet Specifications

Part number: SGM6016
Manufacturer: SG Micro
File Size: 407.22 KB
Datasheet: SGM6016-SGMicro.pdf
Description: Step-Down Converter

Features

* include internal digital soft-start, enable for power sequence, over-current protection and thermal shutdown. FEATURES
* High Efficiency Up to 95%
* 2.7V to 5.5V Supply Voltage
* Very Low Quiescent Current: 30μA in Skip Mode
* 1.2A Guaranteed Output Current
* 3.7% Output Accurac

Applications

* Single Li-ion Battery-Powered Equipment DSP Core Power GPS and Palmtops SGM6016 is available in the Green TDFN-3×3-10L package. It is rated over the -40℃ to +85℃ temperature range. SG Micro Corp www. sg-micro. com REV. A. 1 SGM6016 1.2A, 1.6MHz, High Efficiency Synchronous Step-Down Regulator PA
