SGM61431 Datasheet, Converters, SG Micro

SGM61431 Features

• Converters
• Wide 4.5V to 36V Input Voltage Range
• Up to 3A Continuous Output Current
• SGM61430:
• 0.8V to 24V Output Voltage Range
• PFM at Light Load Co

PDF File Details

Part number:

SGM61431

Manufacturer:

SG Micro

File Size:

0.97MB

Download:

📄 Datasheet

Description:

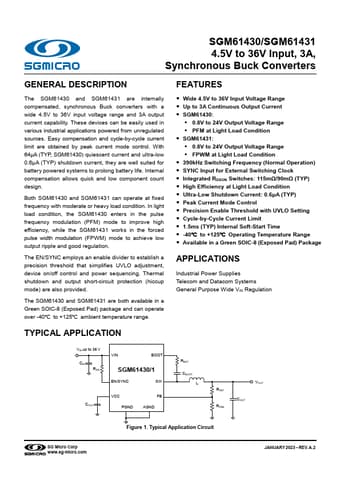

Synchronous buck converters. The SGM61430 and SGM61431 are internally compensated, synchronous Buck converters with a wide 4.5V to 36V input voltage range and 3A

SGM61431 Application

• Applications powered from unregulated sources. Easy compensation and cycle-by-cycle current limit are obtained by peak current mode control. With 64
