SGM61432 - Adjustable Switching Frequency Buck Converter

SGM61432 Description

SGM61432 40V/3.5A, Adjustable Switching Frequency Buck Converter with 38μA IQ GENERAL .
FEATURES The SGM61432 is a current mode controlled nonsynchronous Buck converter with 4V to 40V input range and 3.

SGM61432 Features

* The SGM61432 is a current mode controlled nonsynchronous Buck converter with 4V to 40V input range and 3.5A continuous output current. A low RDSON N-MOSFET is integrated as high-side switch. Moreover, the low 38μA quiescent current and low shutdown current of only 1.3μA (TYP) make it a suitable cho

SGM61432 Applications

* Also, the internal loop compensation simplifies compensation network design and saves user design time and cost. The UVLO level can be adjusted (increased) by an external resistor divider. Switching frequency can be selected over a wide range (200kHz to 2500kHz) to allow desired tradeoff among effi

📥 Download Datasheet

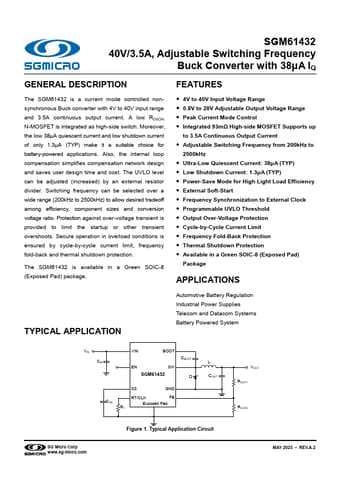

Preview of SGM61432 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SGM61432
Manufacturer
SG Micro
File Size
1.54 MB
Datasheet
SGM61432-SGMicro.pdf
Description
Adjustable Switching Frequency Buck Converter
