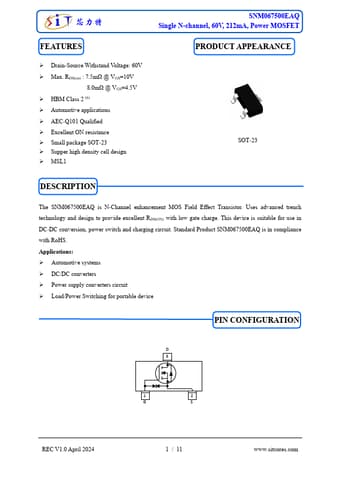

SNM067500EAQ Datasheet, Mosfet, SIT

SNM067500EAQ Features

• Mosfet
• Drain-Source Withstand Voltage: 60V
• Max. RDS(on) : 7.5mΩ @ VGS=10V 8.0mΩ @ VGS=4.5V
• HBM Class 2 (6)
• Automotive applications
• AEC-Q101 Qu

PDF File Details

Part number:

SNM067500EAQ

Manufacturer:

SIT

File Size:

705.17kb

Download:

📄 Datasheet

Description:

Single n-channel power mosfet. The SNM067500EAQ is N-Channel enhancement MOS Field Effect Transistor. Uses advanced trench technology and design to provide excellen

SNM067500EAQ Application

• Applications
• AEC-Q101 Qualified
• Excellent ON resistance
• Small package SOT-23
• Supper high density cell design
