2STF1525 Datasheet - ST Microelectronics

Transistors

2STF1525 Features

* Very low collector-emitter saturation voltage High current gain characteristic Fast switching speed 4 3 2 1 Applications

* Emergency lighting LED Motherboard and hard disk drive Mobile equipment Battery charger Voltage regulation Figure 1. SOT-

2STF1525 General Description

The device is a NPN transistor manufactured using new “PB-HCD” (power bipolar high current density) technology. The resulting transistor shows exceptional high gain performances coupled with very low saturation voltage. Table 1. Device summary Marking 1525 Package SOT-89 Packaging Tape and reel O.

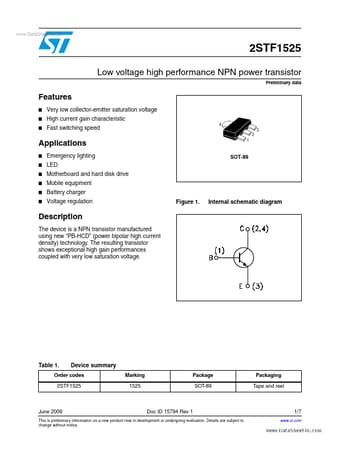

2STF1525 Datasheet (132.85 KB)
