2STF2220 - High Gain Low Voltage PNP Power Transistor

ST Microelectronics

📥 Download Datasheet

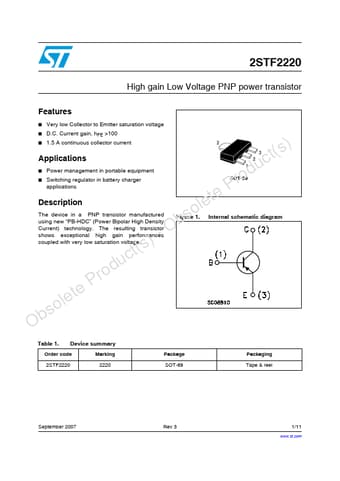

2STF2220 Datasheet Preview — Preview of 2STF2220 PDF

Datasheet Details

Part number	2STF2220
Manufacturer	STMicroelectronics
File Size	224.02 KB
Description	High Gain Low Voltage PNP Power Transistor
Datasheet	2STF2220_STMicroelectronics.pdf

2STF2220 Product details

Description

The device in a PNP transistor manufactured using new “PB-HDC” (Power Bipolar High Density Current) technology. Power management in portable equipment Switching regulator in battery charger applications Order codes Part Number 2STF2220 Marking 2220 Package SOT-89 Packing Tape & reel September 2006 Rev 2 1/11 www.st.com 11 2STF2220

Features

Very low Collector to Emitter saturation voltage D. C. Current gain, hFE >100 1.5 A continuous collector current In compliance with the 2002/93/EC European Directive SOT-89.
