2STF2340 Datasheet - STMicroelectronics

Low voltage fast-switching PNP power transistors

2STF2340 General Description

The devices are PNP transistors manufactured using new “PB-HDC” (power bipolar high density current) technology. The resulting transistor shows exceptional high gain performances coupled with very low saturation voltage. The 2STF2340 complementary PNP is the 2STF1340. 4 4 3 2 1 3 2 1 SOT-89 SOT.

2STF2340 Datasheet (210.52 KB)

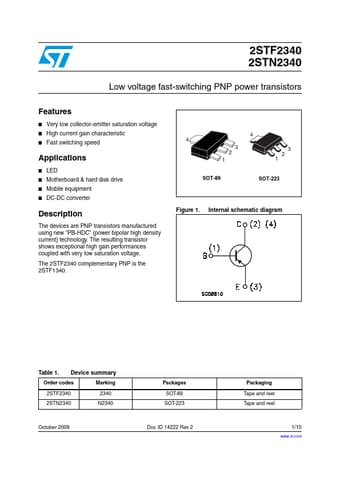

Preview of 2STF2340 PDF

Datasheet Details

Part number:

2STF2340

Manufacturer:

STMicroelectronics ↗

File Size:

210.52 KB

Description:

Low voltage fast-switching pnp power transistors.
