2STF1340 - Low voltage fast-switching NPN power bipolar transistor

STMicroelectronics

📥 Download Datasheet

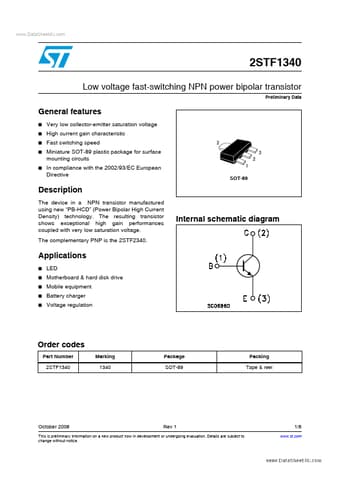

2STF1340 Datasheet Preview — Preview of 2STF1340 PDF

Datasheet Details

Part number	2STF1340
Manufacturer	STMicroelectronics
File Size	152.67 KB
Description	Low voltage fast-switching NPN power bipolar transistor
Datasheet	2STF1340_STMicroelectronics.pdf

2STF1340 Product details

Description

The device in a NPN transistor manufactured using new “PB-HCD” (Power Bipolar High Current Density) technology. LED Motherboard & hard disk drive Mobile equipment Battery charger Voltage regulation Order codes Part Number 2STF1340 Marking 1340 Package SOT-89 Packing Tape & reel

Features

Very low collector-emitter saturation voltage High current gain characteristic Fast switching speed Miniature SOT-89 plastic package for surface mounting circuits In compliance with the 2002/93/EC European Directive SOT-89.
