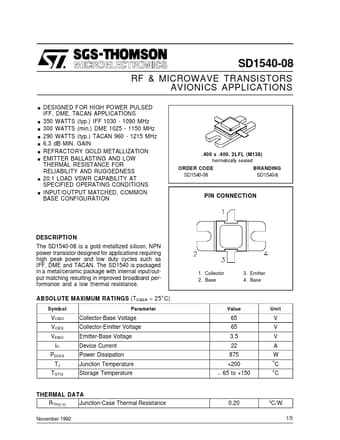

SD1540-08 RF & MICROWAVE TRANSISTORS

The SD1540-08 is a gold metallized silicon, NPN power transistor designed for applications requiring high peak power and low duty cycles such as IFF, DME and TACAN. The SD1540 is packaged in a metal/ceramic package with internal input/output matching resulting in improved broadband performance and a.

SD1540-08 RF & MICROWAVE TRANSISTORS AVIONICS APPLICATIONS . . . . . . . . . DESIGNED FOR HIGH POWER PULSED IFF, DME, TACAN APPLICATIONS 350 WATTS (typ.) IFF 1030 - 1090 MHz 300 WATTS (min.) DME 1025 - 1150 MHz 290 WATTS (typ.) TACAN 960 - 1215 MHz 6.3 dB MIN. GAIN REFRACTORY GOLD METALLIZATION EMITTER BALLASTING AND LOW THERMAL RESISTANCE FOR RELIABILITY AND RUGGEDNESS 20:1 LOAD VSWR CAPABILITY AT SPECIFIED OPERATING CONDITIONS INPUT/OUTPUT MATCHED, COMMON BASE CONFIGURATION .400 x .400. 2LF.
