SD1541-09

RF & MICROWAVE TRANSISTORS

SD1541-09 General Description

The SD1541-09 is a gold metallized silicon NPN planar transistor. The SD1541-09 is designedfor applications requiring high peak and low duty cycles such as IFF. The SD1541-09 is packaged in a metal/ceramic package with internal input matching, resulting in improved broadband performance and a low th.

SD1541-09 Datasheet (47.38 KB)

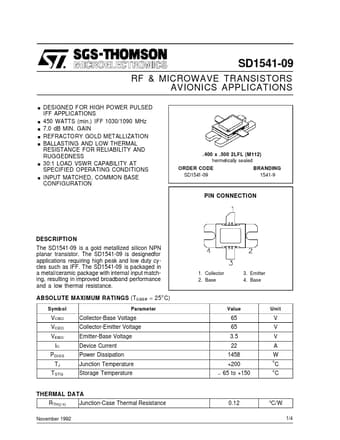

Preview of SD1541-09 PDF

Datasheet Details

Part number:

SD1541-09

Manufacturer:

STMicroelectronics ↗

File Size:

47.38 KB

Description:

Rf & microwave transistors.
SD1541-09 RF & MICROWAVE TRANSISTORS AVIONICS APPLICATIONS . . . . . . . DESIGNED FOR HIGH POWER PULSED IFF APPLICATIONS 450 WATTS (min.) IFF 1030/1.
