SD1541-01 RF & MICROWAVE TRANSISTORS

SD1541-01 Description

SD1541-01 RF & MICROWAVE TRANSISTORS AVIONICS APPLICATIONS *..DESIGNED FOR HIGH POWER PULSED IFF AND DME APPLICATIONS 400 (min.) DME 1025 .
The SD1541-01 is a hermetically sealed, gold metallized, silicon NPN power transistor.

SD1541-01 Applications

* . . DESIGNED FOR HIGH POWER PULSED IFF AND DME APPLICATIONS 400 (min. ) DME 1025 - 1150 MHz 6.5 dB MIN. GAIN REFRACTORY GOLD METALLIZATION EMITTER BALLASTING AND LOW THERMAL RESISTANCE FOR RELIABILITY AND RUGGEDNESS 30:1 LOAD VSWR CAPABILITY AT SPECIFICIED OPERATING CONDITIONS INPUT/OUTPUT

📥 Download Datasheet

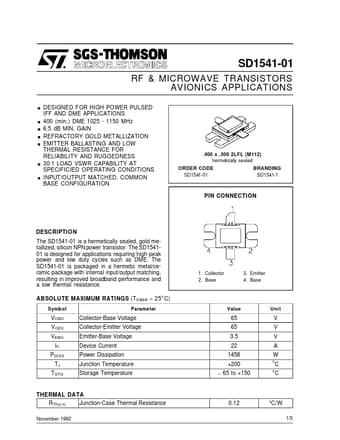

Preview of SD1541-01 PDF
