SD1542 RF & MICROWAVE TRANSISTORS

SD1542 Description

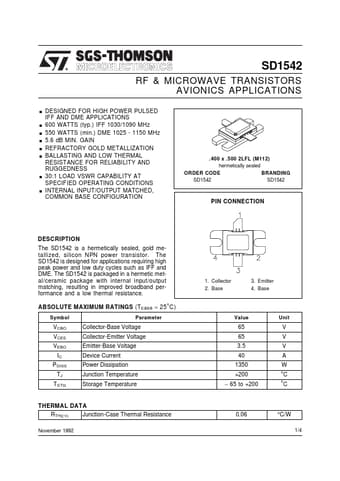

SD1542 RF & MICROWAVE TRANSISTORS AVIONICS APPLICATIONS *...DESIGNED FOR HIGH POWER PULSED IFF AND DME APPLICATIONS 600 WATTS (typ.) IFF .
The SD1542 is a hermetically sealed, gold metallized, silicon NPN power transistor.

SD1542 Applications

* . . . DESIGNED FOR HIGH POWER PULSED IFF AND DME APPLICATIONS 600 WATTS (typ. ) IFF 1030/1090 MHz 550 WATTS (min. ) DME 1025 - 1150 MHz 5.6 dB MIN. GAIN REFRACTORY GOLD METALLIZATION BALLASTING AND LOW THERMAL RESISTANCE FOR RELIABILITY AND RUGGEDNESS 30:1 LOAD VSWR CAPABILITY AT SPECIFIED
