SD1542-42, RF & MICROWAVE TRANSISTORS

SD1542-42 RF & MICROWAVE TRANSISTORS AVIONICS APPLICATIONS *..DESIGNED FOR HIGH POWER PULSED IFF 600 WATTS (min.) IFF 1030 or 1090 MHz REF.
The SD1542-42 is a hermetically sealed, gold metallized, silicon NPN power transistor.

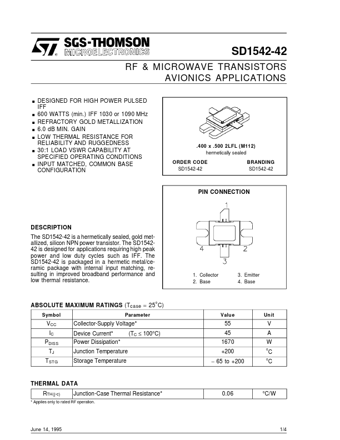

datasheet Preview Page 1 from Datasheet4u.com

SD1542-42_STMicroelectronics.pdf

SD1542-42 Datasheet Preview — Preview of SD1542-42 PDF

Datasheet Details

Part number:

SD1542-42

Manufacturer:

STMicroelectronics ↗

File Size:

57.89 KB

Description:

RF & MICROWAVE TRANSISTORS

Applications

* . . DESIGNED FOR HIGH POWER PULSED IFF 600 WATTS (min. ) IFF 1030 or 1090 MHz REFRACTORY GOLD METALLIZATION 6.0 dB MIN. GAIN LOW THERMAL RESISTANCE FOR RELIABILITY AND RUGGEDNESS 30:1 LOAD VSWR CAPABILITY AT SPECIFIED OPERATING CONDITIONS INPUT MATCHED, COMMON BASE CONFIGURATION .400 x .5
