STB100NF03L-03-1, STB100NF03L-03 - N-CHANNEL POWER MOSFET

STB100NF03L-03-1 Description

www.DataSheet4U.com N-CHANNEL 30V - 0.0026 Ω -100A D²PAK/I²PAK/TO-220 STripFET™ II POWER MOSFET TYPE STB100NF03L-03 STP100NF03L-03 STB100NF03L-03-01 .
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

STB100NF03L-03-1 Applications

* s HIGH CURRENT, HIGH SWITCHING SPEED s MOTOR CONTROL, AUDIO AMPLIFIERS s DC-DC & DC-AC CONVERTERS s SOLENOID AND RELAY DRIVERS ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID(1) ID(1) IDM(
* ) Ptot EAS(2) Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- s

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STB100NF03L-03-1, STB100NF03L-03. Please refer to the document for exact specifications by model.

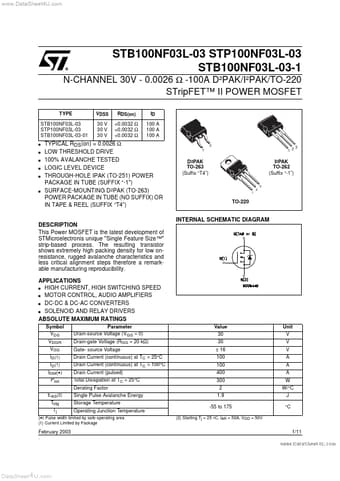

datasheet Preview Page 2 datasheet Preview Page 3
