STB100NF03L-03 Datasheet - ST Microelectronics

STB100NF03L-03 N-CHANNEL POWER MOSFET

www.DataSheet4U.com N-CHANNEL 30V - 0.0026 Ω -100A D²PAK/I²PAK/TO-220 STripFET™ II POWER MOSFET TYPE STB100NF03L-03 STP100NF03L-03 STB100NF03L-03-01 s s s s s STB100NF03L-03 STP100NF03L-03 STB100NF03L-03-1 VDSS 30 V 30 V 30 V RDS(on) <0.0032 Ω <0.0032 Ω <0.0032 Ω ID 100 A 100 A 100 A 3 1 3 12 s TYPICAL RDS(on) = 0.0026 Ω LOW THRESHOLD DRIVE 100% AVALANCHE TESTED LOGIC LEVEL DEVICE THROUGH-HOLE IPAK (TO-251) POWER PACKAGE IN TUBE (SUFFIX “-1") SURFACE-MOUNTING D2PAK (TO-263) POWER PACKAGE .

STB100NF03L-03_STMicroelectronics.pdf

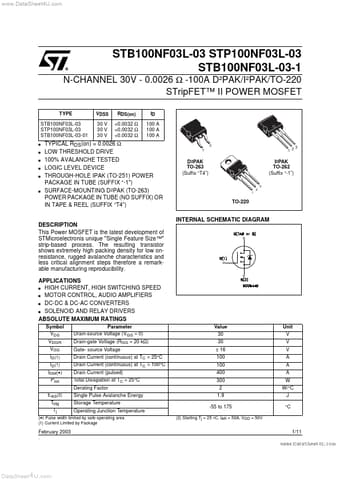

Preview of STB100NF03L-03 PDF
STB100NF03L-03 Datasheet Preview Page 2 STB100NF03L-03 Datasheet Preview Page 3

Datasheet Details

Part number:

STB100NF03L-03

Manufacturer:

STMicroelectronics ↗

File Size:

440.14 KB

Description:

N-channel power mosfet.
