STB100NF04-1, STB100NF04, N-CHANNEL POWER MOSFET

www.DataSheet4U.com N-CHANNEL 40V - 0.0043Ω - 120A TO-220/D2PAK/I2PAK STripFET™ II POWER MOSFET TYPE STP100NF04 STB100NF04 STB100NF04-1 s s s STP100.
This Power Mosfet is the latest development of STMicroelectronics unique “Single Feature Size™” strip-based process.

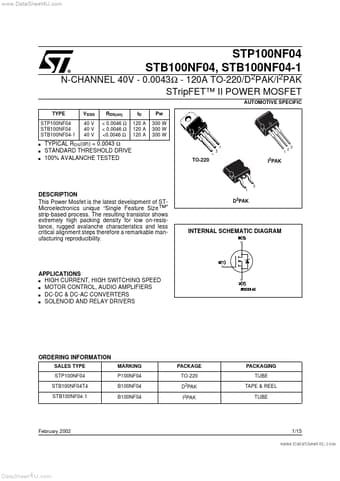

datasheet Preview Page 1 from Datasheet4u.com

STB100NF04_STMicroelectronics.pdf

STB100NF04-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: STB100NF04-1, STB100NF04. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STB100NF04-1, STB100NF04

Manufacturer:

STMicroelectronics ↗

File Size:

619.10 KB

Description:

N-CHANNEL POWER MOSFET

Note:

This datasheet PDF includes multiple part numbers: STB100NF04-1, STB100NF04.
Please refer to the document for exact specifications by model.

Applications

* s HIGH CURRENT, HIGH SWITCHING SPEED s MOTOR CONTROL, AUDIO AMPLIFIERS s DC-DC & DC-AC CONVERTERS s SOLENOID AND RELAY DRIVERS ORDERING INFORMATION SALES TYPE STP100NF04 STB100NF04T4 STB100NF04-1 MARKING P100NF04 B100NF04 B100NF04 PACKAGE TO-220 D2PAK I2PAK PACKAGING TUBE TAPE & REEL TUBE February
